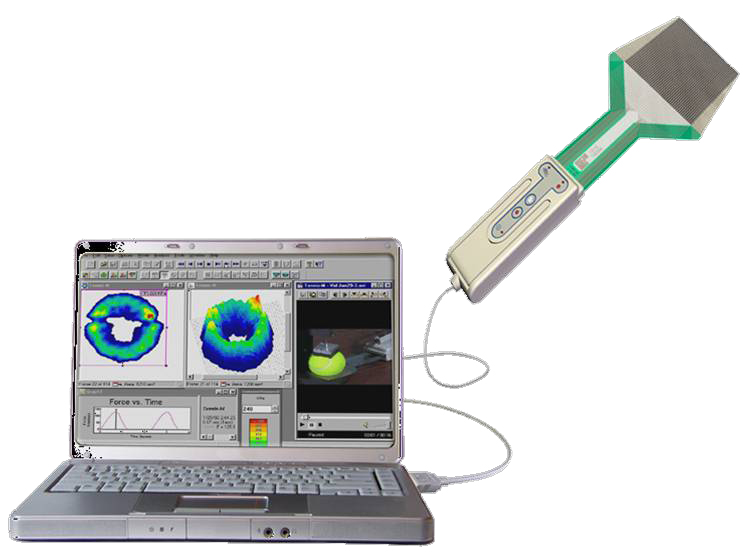

- TEKSCAN 压力分布测试系统
产品功能：测量整个受力面压力分布的情况。
主要原理：在薄膜上分布2000多个压力测点，从而测量出受力面的整个面的压力分布情况。其主要特点：
0.1mm 超薄感应片
测力范围：5mmHg-170MPa
超过200种现有规格可选
多种规格尺寸：12mm*12mm -9.2㎡
最高密度：248测点/c㎡(修改后)
最高采样频率：10kHz
可以根据材质定制各种形状
- 产品型号：I-SCAN、I-SCAN Lite 等8个型号，常用为 I-SCAN型，具体阅读以下各型号说明
|

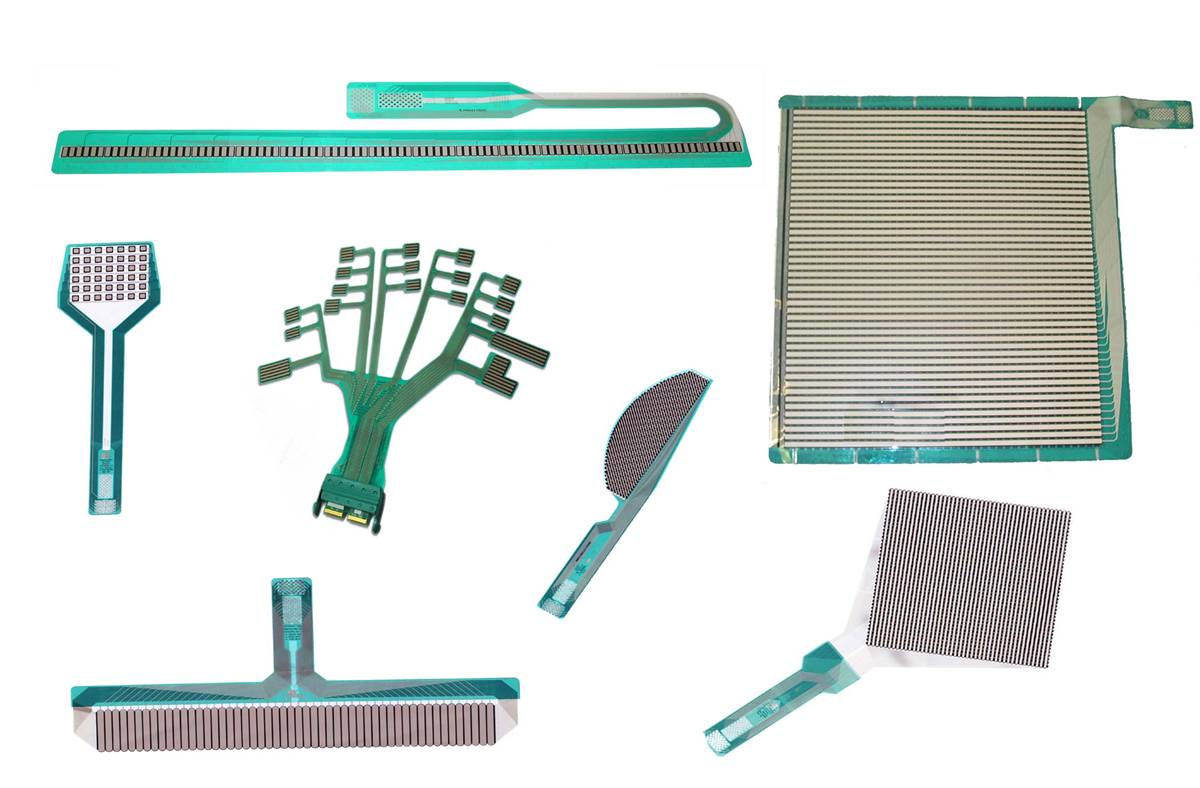

感测片规格
厚度大約為0.1mm (但亦可提升厚度，以增加其耐久性)。不但挠性佳(可弯曲)，利用网版印刷的制做方式，可制做出大面积的感测器。而在形狀部分，亦可依操作仪器的特殊外型(形狀、表面弧度等)，制做出形状适合的感测系统。
压力感测片构造与原理
感测片规格
感应片型号Sensor |
Standard Pressure Range（压力量程范围）
PSI (KPa) |
Sensing Dimensions (WxH)（感测区域尺寸）
in. (mm) |
Sensel Spatial Resolution（感测点空间密度）
per sq. in. (per sq. cm) |
|
300 (2,068) |
6.60 x 6.60 (167.6 x 167.6) |
25.0 (3.9) |
|
contact us |
1.80 x 1.65 (45.7 x 41.9) |
177.8 (27.6) |
|
50 (344.7)
500 (3,447) |
1.10 x 1.10 (27.9 x 27.9) |
1600.0 (248.0) |
|
50 (344.7)
500 (3,447) |
1.76 x 1.76 (44.7 x 44.7) |
625.0 (96.9) |
|
73 (503.3) |
1.73 x 1.73 (44.0 x 44.0) |
645.2 (100.0) |
|
7 (48.26)
20 (137.9)
50 (344.7)
75 (517.1)
150 (1,034)
250 (1,723)
350 (2,413)
500 (3,447)
1,200 (8,273)
2,500 (17,236)
5,000 (34,473)
10,000 (68,947)
25,000 (172,368) |
2.20 x 2.20 (55.9 x 55.9) |
400.0 (62.0) |
|
50 (344.7)
350 (2,413)
500 (3,447)
1,000 (6,894)
3,000 (20,684)
5,000 (34,473)
10,000 (68,947)
15,000 (103,421) |
3.30 x 3.30 (83.8 x 83.8) |
178.8 (27.6) |
|
6 (41.36)
10 (68.95)
50 (344.7)
150 (1,034)
500 (3,447)
3,000 (20,684)
5,000 (34,473) |
4.40 x 4.40 (111.8 x 111.8) |
100.0 (15.5) |
|
189 (1,303)
1,015 (6,998) |
6.50 x 6.50 (165.0 x 165.0) |
45.9 (7.1) |
|
12 (82.74)
29 (199.9)
189 (1,303)
1,015 (6,998) |
9.35 x 9.35 (237.6 x 237.6) |
22.1 (3.4) |
5250 |
10 (68.95)
25 (172.4)
1,500 (6,998) |
9.68 x 9.68 (245.9 x 245.9) |
20.7 (3.2) |
|
300 (2,068) |
16.72 x 16.72 (424.7 x 424.7) |
6.9 (1.1) |
|
contact us |
0.50 x 0.50 (12.7 x 12.7) |
400.0 (62.0) |
|
36 (248.2) |
0.47 x 0.47 (12.0 x 12.0) |
400.0 (62.0) |
|
1,200 (8,273)
2,000 (13,789) |
2.80 x 2.80 (71.1 x 71.1) |
25.0 (3.9) |
|
500 (3,447)
2,000 (13,789) |
4.41 x 3.78? (112.0 x 96.0) |
2.5 (0.4) |
Sensor |
Standard Pressure Range
PSI (KPa) |
Sensing Dimensions (WxH)
in. (mm) |
Sensel Spatial Resolution
per sq. in. (per sq. cm) |
| 3150 |
125 (861.8) |
17.16 x 14.52 (435.9 x 368.8) |
9.2 (1.4) |
| 5315 |
5 (34.47)
30 (206.8) |
19.20 x 16.80 (487.7 x 426.7) |
6.3 (1.0) |
| 5330 |
5 (34.47) |
18.56 x 18.56 (471.4 x 471.4) |
3.0 (0.5) |
| 5350 |
5 (34.47) |
16.40 x 15.20 (416.6 x 386.1) |
6.3 (1.0) |
| 5360 |
7 (48.26) |
13.92 x 22.04 (353.6 x 559.8) |
3.0 (0.5) |
| 5400N |
4 (27.58) |
22.76 x 34.80 (578.0 x 884.0) |
2.2 (0.3) |
Sensor |
Standard Pressure Range
PSI (KPa) |
Sensing Dimensions (WxH)
in. (mm) |
Sensel Spatial Resolution
per sq. in. (per sq. cm) |
6220 |
1,700 (11,721)
17,000 (117,210)
30,000 (206,842) |
0.25 x 2.00 (6.4 x 50.8) |
449.0 (69.6) |
6230 |
3,000 (20,684)
30,000 (206,842) |
0.80 x 2.95 (20.3 x 74.9) |
382.0 (59.2) |
6500 |
10,000 (68,947)
30,000 (206,842) |
3.50 x 5.60 (88.9 x 142.3) |
125.9 (19.5) |
6510 |
10,000 (68,947)
30,000 (206,842) |
3.02 x 5.12 (76.6 x 129.9) |
140.9 (21.8) |
6700 |
contact us |
3.68 x 5.58 (93.4 x 141.8) |
15.9 (2.5) |
Sensor |
Standard Pressure Range
PSI (KPa) |
Sensing Dimensions (WxH)
in. (mm) |
Sensel Spatial Resolution
per sq. in. (per sq. cm) |
5501 |
50 (344.7) |
12.03 x 3.24 (305.7 x 82.3) |
6.8 (1.0) |
5510 |
*4 (27.58)
*10 (68.95) |
12.14 x 3.40 (308.5 x 86.4) |
36.2 (5.6) |
5511 |
*300 (2,068)
500 (3,447)
2,500 (17,236) |
12.10 x 3.40 (307.3 x 86.4) |
36.4 (5.6) |
5526 |
10,000 (68,947) |
12.10 x 1.30 (307.3 x 33.0) |
145.5 (22.5) |
5550 |
*40 (275.8)
*200 (1,378) |
1.66 x 1.56 (42.1 x 39.6) |
102.0 (15.8) |
5555 |
500 (3,447) |
17.99 x 2.20 (457.0 x 55.9) |
57.8 (9.0) |
5570 |
*100 (689.5)
*500 (3,447) |
8.36 x 3.24 (212.3 x 82.3) |
9.7 (1.5) |
5612N |
14 (96.53) |
38.98 x 1.97 (990.0 x 50.0) |
0.4 (0.1) |
5617N |
14 (96.53) Low Row
43 (296.5) High Row |
6.50 x 1.39 (165.0 x 35.4) |
7.3 (1.1) |
5620N |
102 (703.3) |
12.65 x 1.73 (321.2 x 44.0) |
88.4 (13.7) |
5630N |
102 (703.3) |
8.66 x 1.73 (220.0 x 44.0) |
129.0 (20.0) |
5632N |
7 (48.26) Low Row
28 (193.0) High Row |
12.47 x 1.39 (316.8 x 35.4) |
3.8 ?(0.6) |
5660N |
7 (48.26) Low Row
28 (193.0) High Row |
22.76 x 0.50 (578.0 x 12.7) |
2.0 (0.3) |
Sensor |
Standard Pressure Range
PSI (KPa) |
Sensing Dimensions (WxH)
in. (mm) |
Sensel Spatial Resolution
per sq. in. (per sq. cm) |
4201 |
5 (34.47)
2,000 (13,789) |
1.80 X 0.83 (45.7 X 21.0) |
177.8 (27.6) |
5260 |
500 (3,447) |
18.98 x 8.14 (482.1 x 206.8) |
14.8 (2.3) |
5320 |
contact us |
17.60 x 12.00 (447.0 x 304.8) |
6.3 (1.0) |
5515 |
2,500 (17,236) |
3.40 x 13.52 (86.4 x 343.4) |
38.5 (6.0) |
6077 |
5 (34.47) |
3.75 x 2.10 (95.3 x 53.3) |
177.8 (27.6) |
6300 |
10 (68.95)
50 (344.7)
100 (689.4)
1,000 (6,894)
10,000 (68,947) |
10.40 x 1.32 (264.2 x 33.5) |
166.7 (25.8) |
Sensor |
Standard Pressure Range
PSI (KPa) |
Sensing Dimensions (WxH)
in. (mm) |
Sensel Spatial Resolution
per sq. in. (per sq. cm) |
8100 |
250 (1,723)
1,000 (6,894)
2,000 (13,789) |
0.60 x 3.12 (15.2 x 79.2) |
333.3 (51.7) |
8110 |
4,000 (27,579) |
0.60 x 7.80 (15.2 x 198.1) |
133.3 (20.7) |
8150 |
contact us |
0.73 x 16.00 (18.4 x 406.4) |
8.0 (3.1) |
8155 |
contact us |
0.73 x 26.00 (18.4 x 660.4) |
8.0 (3.1) |
9901 |
10 (68.95) |
24.00 x 0.38 (609.6 x 9.7) |
4.0 (1.6) |
9920 |
10 (68.95) |
32.00 x 0.77 (812.8 x 19.5) |
4.0 (1.6) |
Sensor |
Standard Pressure Range
PSI (KPa) |
Sensing Dimensions (WxH)
in. (mm) |
Sensel Spatial Resolution
per sq. in. (per sq. cm) |
5026 |
500 (3,447) |
2.60 x 2.20 (66.0 x 55.9) |
1600.0 (248.0) |
6010N |
29 (199.9) |
14.20 x 14.20(360.8 x 360.8) |
38.4 (5.9) |
6020N |
29 (199.9) |
1.97 x 3.15 (50.0 x 80.0) |
145.2 (22.5) |
6030N |
29 (199.9) |
1.97 x 3.15 (50.0 x 80.0) |
145.2 (22.5) |
7100 |
125 (861.8) |
19.20 x 17.40(487.7 x 442.0) |
25.0 (3.9) |
7501 |
300 (2,068) |
3.94 x 3.47 (100.1 x 88.1) |
644.2 (99.8) |
8000 |
300 (2,068) |
11.52 x 10.56 (292.6 x 268.2) |
69.4 (10.8) |
8050 |
300 (2,068) |
11.52 x 10.56 (292.6 x 268.2) |
277.8 (43.1) |
Sensor |
Standard Pressure Range
PSI (KPa) |
Sensing Dimensions (WxH)
in. (mm) |
Sensel Spatial Resolution
per sq. in. (per sq. cm) |
3000 |
75 (517.1)
125 (861.8) |
4.20 x 12.00 (106.7 x 304.8) |
25.0 (3.9) |
3000E |
75 (517.1)
125 (861.8) |
4.20 x 12.00 (106.7 x 304.8) |
25.0 (3.9) |
3001 |
125 (861.8) |
4.20 x 12.00 (106.7 x 304.8) |
25.0 (3.9) |
3001E |
125 (861.8) |
4.20x 12.00 (106.7 x 304.8) |
25.0 (3.89) |
4000 |
1,500 (10,342)
9,000 (62,052)
10,000 (68,947) |
1.10 X 1.30 (27.9 X 33.0) |
400.0 (62.0) |
4010N |
1,015 (6,998) |
2.68 X 1.73 (68.0 X 44.0) |
161.5(25.0) |
4255N |
29 (199.9) |
0.63 x 0.63 (16.0 x 16.0) |
40.3 (6.3) |
4256 |
50 (344.7) |
Various |
40.3 (6.2) |
4256E |
50 (344.7) |
Various |
40.3 (6.2) |
5033 |
3,700 (25,510) |
1.05 x 1.51 (26.7 x 38.3) |
929.5 (144.1) |
6900 |
1,100 (6,894)
10,000 (68,947) |
0.55 x 0.55 (14.0 x 14.0) |
400.0(62.0) |
6911 |
contact us |
0.12 x 0.12 (3.0 x 3.0) |
625.0 (96.9) |
9801 |
5 (34.47)
35 (241.3) |
3.0 x 8.0 (76.2 x 203.2) |
4.0 (0.6) |
9830 |
10 (68.95) |
7.43 x 8.00(188.6 x 203.2) |
3.0 (0.5) |
9850 |
1,650 (11,376) |
2.58 x 6.30 (65.5 x 160.0) |
61.4 (9.5) |
9851 |
1,700 (11,721) |
3.00 x 9.33 (76.2 x 237.0) |
23.5 (3.6) |
9855N |
218 (1,503)
2,176 (15,002) |
4.33 x 1.77 (110.0 x 44.9) |
108.4 (16.8) |
9856N |
218 (1,503)
2,176 (15,002) |
5.20 x 2.32 (132.0 x 59.0) |
79.1 (12.3) |
9870 |
contact us |
7.80 x 10.71 (198.1 x 272.1) |
49.6 (7.7) |
| 9910 |
contact us |
14.27 x 3.82 (362.5 x 97.0) |
44.4 (6.9) |
Sensor |
Standard Pressure Range
PSI (KPa) |
Sensing Dimensions (WxH)
in. (mm) |
Sensel Spatial Resolution
per sq. in. (per sq. cm) |
5315QL |
5 (34.47)
30 (206.8) |
76.80 x 16.80 (1950.7 x 426.7) |
6.3 (1.0) |
| 5315O |
5 (34.47)
30 (206.8) |
76.80 x 33.60 (1950.7 x 853.4) |
6.3 (1.0) |
| 5499D |
4 (27.58) |
22.76 x 69.61 (578.0 x 1768.0) |
2.2 (0.3) |
| 5400TL |
4 (27.58) |
68.27 x 34.80 (1734.0 x 884.0) |
2.2 (0.3) |
| 5400QL |
4 (27.58) |
91.02 x 34.80 (2312.0 x 884.0) |
2.2 (0.3) |
Sensor |
Standard Pressure Range
PSI (KPa) |
Sensing Dimensions (WxH)
in. (mm) |
Sensel Spatial Resolution
per sq. in. (per sq. cm) |
5315 |
5 (34.47)
30 (206.8) |
19.20 x 16.80 (487.7 x 426.7) |
6.3 (1.0) |
| 5330 |
5 (34.47) |
18.56 x 18.56 (471.4 x 471.4) |
3.0 (0.5) |
| 5330D |
5 (34.47) |
18.56 x 38.13 (471.4 x 968.5) |
3.0 (0.5) |
| 5350 |
5 (34.47) |
16.40 x 15.20 (416.6 x 386.1) |
6.3 (1.0) |
| 5400N |
4 (27.58) |
22.76 x 34.80 (578.0 x 884.0) |
2.2 (0.3) |
Sensor |
Standard Pressure Range
PSI (KPa) |
Sensing Dimensions (WxH)
in. (mm) |
Sensel Spatial Resolution
per sq. in. (per sq. cm) |
7101D |
125 (861.8)
|
38.40 x 17.60 (975.4 x 447.0) |
25.0(3.9) |
| 7101D2 |
125 (861.8) |
19.20 x 35.20 (487.7 x 894.1) |
25.0(3.9) |
| 7101Q |
125 (861.8)
|
38.40 x 35.20 (975.4 x 894.1) |
25.0(3.9) |
| 8000D |
300 (2,068)
|
23.04 x 10.56 (585.2 x 268.2) |
69.4(10.8) |
| 8000D2 |
300 (2,068)
|
11.52 x 21.12 (292.6 x 536.4) |
69.4(10.8) |
| 8000Q |
300 (2,068) |
23.04 x 21.12 (585.2 x 536.4) |
69.4(10.8) |
| 8050 |
300 (2,068) |
11.52 x 10.56 (292.6 x 268.2) |
277.8 (43.1) |
| 8400 |
300 (2,068) |
10.56 x 12.48 (268.2 x 317.0) |
277.8 (43.1) |
| 8405 |
300 (2,068) |
10.56 x 12.48 (268.2 x 317.0) |
625.0 (96.9) |
Sensor |
Standard Pressure Range
PSI (KPa) |
Sensing Dimensions (WxH)
in. (mm) |
Sensel Spatial Resolution
per sq. in. (per sq. cm) |
5101D |
6 (41.36)
10 (68.95)
50 (344.7)
150 (1,034)
500 (3,447)
3,000 (20,684)
5,000 (34,473) |
8.80 x 4.40 (223.5 x 111.8) |
100.0 (15.5) |
| 5101TL |
6 (41.36)
10 (68.95)
50 (344.7)
150 (1,034)
500 (3,447)
3,000 (20,684)
5,000 (34,473) |
13.20 x 4.40 (335.3 x 111.8) |
100.0 (15.5) |
| 5101QL |
6 (41.36)
10 (68.95)
50 (344.7)
150 (1,034)
500 (3,447)
3,000 (20,684)
5,000 (34,473) |
17.60 x 4.40 (447.0 x 111.8) |
100.0 (15.5) |
| 7101D |
125 (861.8) |
38.40 x 17.60 (975.4 x 447.0) |
25.0(3.9) |
| 7101D2 |
125 (861.8) |
19.20 x 35.20 (487.7 x 894.1) |
25.0(3.9) |
| 7101Q |
125 (861.8) |
38.40 x 35.20 (975.4 x 894.1) |
25.0(3.9) |
#
|
|
|
|
